ASCOM SE-140 / BOSCH HFG168

This transceiver can be seen as the sucessor of the famous SE-20. Several version for 70cm, 2m and 4m have been produced.

This modification is going now on. More details will be published when the success will be established! At least you will need the IPP-140 software and cable, in order to programm the radio. I have also been told that everything can be programmed from the front panel, but I don't know how, I have the service manual, but not the operating / programming guide.
The software only run on 286 or 386 computers. You must also install the ANSI.sys DOS Driver, or the PC screen is quite esoteric!

SE-140

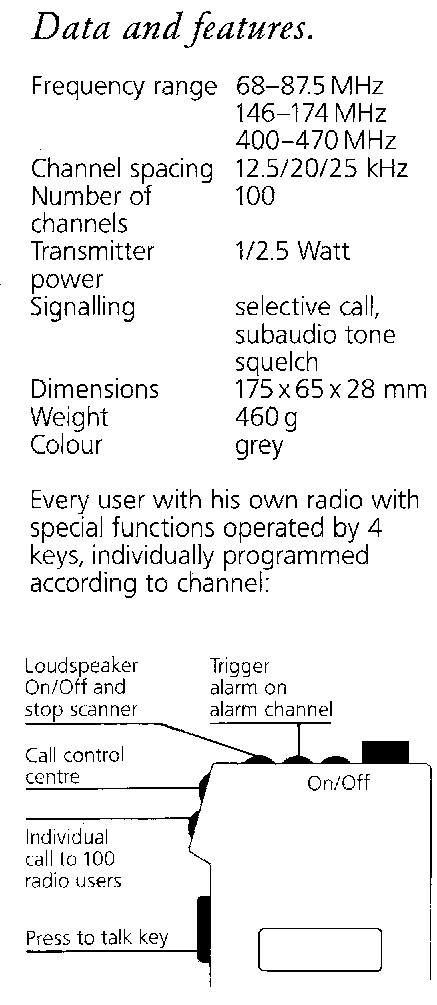

Technical caracteristics common to all models:
Max. channel number 100
Modulation FM or PM
RF Power [W] 1/2.5 (mostly)
Voltage [V] 7.5 nom (6.5..9.0)
Weight with 600 [mAh] battery [g] 460

Designation Frequency band [MHz]
SE 140-162 146-174
SE-140-432 400-440
SE 140-462 430-470

Numbering scheme

Maintenance documentation SE-140-162 (pdf, 700kB)
Maintenance documentation SE-140-432/462 (pdf 700kB)
Programming cable for SE-110 and SE-140 (pdf 180kB)

Typical problems found on the SE-110 transceiver
